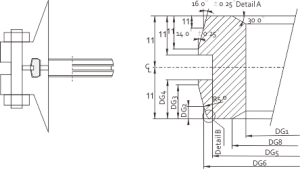

IX series sectional view

sealing ring and its b.2-dimensions

DN NPS IX

size

 Dg1

mm

 DG2

mm

 DG3

mm

 DG4

mm

 DG5

mm

 DG6

mm

 DG7

mm

 DG8

mm

 HG1

mm

 HG2

mm

 HG3

mm

 HG4

mm

 HG5

mm

 RG1

mm

 Weight

kg
15 1／2 IX15 22.2 27.91 28.46 28.66 27.47 29.14 30.19 24.7 0.35 1.20 3.30 3.8 10.00 0.5 0.02
20 3／4 IX20 27.2 32.93 33.47 33.67 32.48 34.16 35.20 29.7 0.35 1.20 3.30 3.8 10.00 0.5 0.03
25 1 IX25 34.2 39.95 40.49 40.69 39.50 41.18 42.22 36.7 0.35 1.20 3.30 3.8 10.00 0.5 0.03
40 1 1／2 IX40 49.3 55.84 56.38 56.58 55.34 57.11 58.21 51.9 0.35 1.27 3.48 4.0 10.56 0.5 0.05
50 2 IX50 61.3 68.43 69.08 69.32 67.92 69.89 71.13 64.4 0.42 1.41 3.89 4.5 11.78 0.6 0.08
65 2 1／2 IX65 74.4 82.14 82.79 83.03 81.52 83.69 85.05 77.8 0.42 1.56 4.28 4.9 12.98 0.6 0.12
80 3 IX80 89.5 97.74 98.49 98.77 97.09 99.47 100.96 93.3 0.49 1.71 4.70 5.4 14.24 0.7 0.17
100 4 IX100 115.7 125.17 126.04 126.36 124.44 127.15 128.85 120.1 0.56 1.94 5.34 6.2 16.19 0.8 0.28
125 5 IX125 142.0 152.66 153.64 154.00 151.87 154.87 156.75 146.7 0.63 2.15 5.92 6.8 17.94 0.9 0.42
150 6 IX150 170.2 182.17 183.25 183.66 181.32 184.61 186.66 175.4 0.70 2.36 6.48 7.5 19.64 1.0 0.62
200 8 IX200 220.5 233.46 234.66 235.10 232.45 236.19 238.54 226.5 0.77 2.68 7.38 8.5 22.36 1.1 0.99
250 10 IX250 274.9 292.64 294.05 294.57 291.57 295.78 298.42 281.7 0.91 3.02 8.31 9.6 25.20 1.3 1.85
300 12 IX300 325.0 341.13 342.65 343.21 339.97 344.52 347.36 332.5 0.98 3.26 8.96 10.4 27.15 1.4 2.18
350 14 IX350 357.1 373.87 375.38 375.94 372.58 377.34 380.32 365.0 0.98 3.42 9.39 11.0 28.46 1.4 2.60
400 16 IX400 409.3 427.36 428.98 429.58 425.98 431.08 434.27 417.9 1.05 3.66 10.05 11.9 30.47 1.5 3.43
450 18 IX450 459.4 478.90 480.63 481.27 477.45 482.85 486.23 468.6 1.12 3.87 10.65 12.7 32.28 1.6 4.38
500 20
